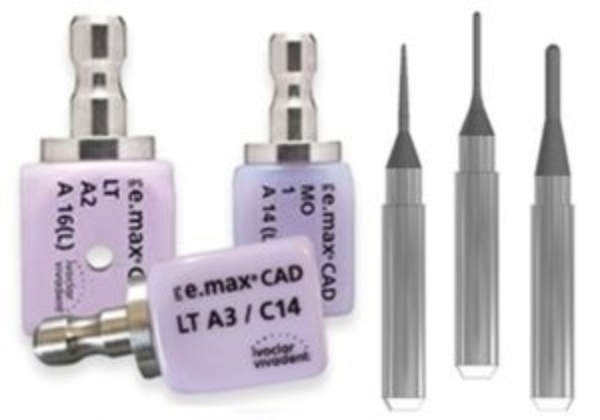

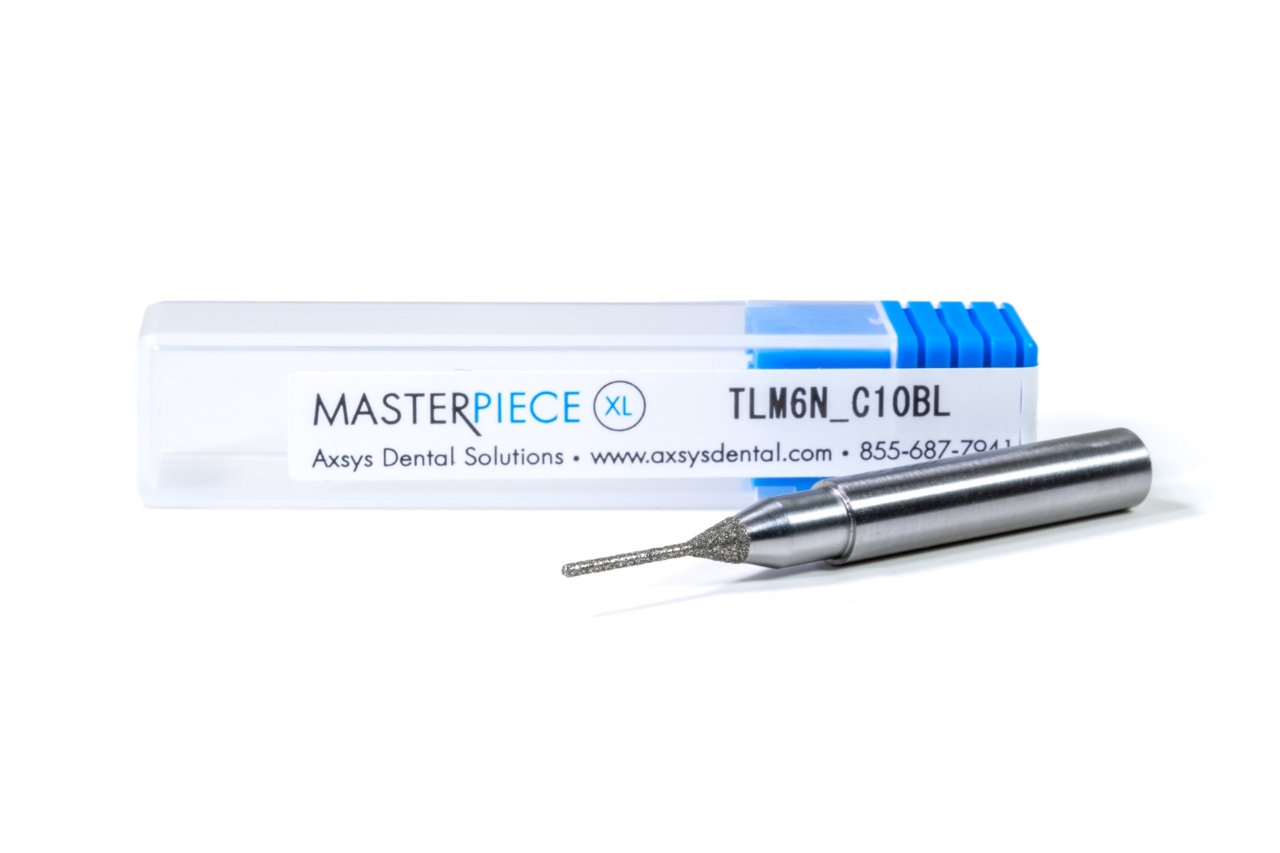

Versamill ax200/450/500(L) Masterpiece XL Glass Ceramic Tool D1.0xL10x50 Plated Diamond Coated Ballnose Grinding Bur.

Suprême.cad is a kind of lithium disilicate glass- ceramic block which is suited for CAD/CAM applications.

Suprême.cad is packaged in sets of (5) in size 18-15-13 and packaged in sets of (4) for size 40-15-15.

Material Properties
Popular in chair-side system restorations for its outstanding aesthetics, dental lithium disilicate glass-ceramics (CAD/CAM) has lower hardness before crystallization and can be quickly milled to a crown. The final strength is greater than 300Mpa after crystallization.

This material can be utilized for high-efficiency aesthetic restorations such as: veneers, inlays, onlays, partial crowns, anterior crowns, posterior crowns etc.

This form of ceramic block is utilized in a CAD/CAM system in a crystalline state (with a lilac color appearance) which is manufactured on a CNC milling machine utilizing a grinding technique.

After milling is completed, a porcelain furnace is used to crystallize the material at a temperature of 840-850°C yielding a restoration with a bi-axial flexural strength bof 420Mpa.

Suprême CAD blocks have been divided into Three categories according to their respective translucency characteristics：

• HT - High Translucency, VITA 16 color system: A1-D4, BL-1-BL-4
• MT - Medium Translucency, VITA16 color system: A1-A3, BL-1-BL-4
• LT - Low Translucency, VITA16 color system: A1-D4, BL-1-BL-4

DOWNLOAD THE USAGE INSTRUCTIONS
DOWNLOAD THE DATASHEET
DOWNLOAD THE MATERIAL DATA SAFETY SHEET

Suprême CAD is packaged in sets of (5) in size 18-15-13 and packaged in sets of (4) for size 40-15-15.

Please note: 40-15-15 blocks are not stocked at the Axsys Warehouse and typically will take 1-2 Weeks lead time for delivery.
