Versamill ax314/726/200/450/500(L) Masterpiece XL Zirconia Tool D0.3xL1.5x50 CVD Diamond Coated Ballnose Endmill.

Compatible with the Versamill ax314/726/200/450/500(L)

6mm Shank with 5mm grind compatibile with Arum metal tool pockets and other compatible machines.

OEM Compatible P/N ==> ZB-07

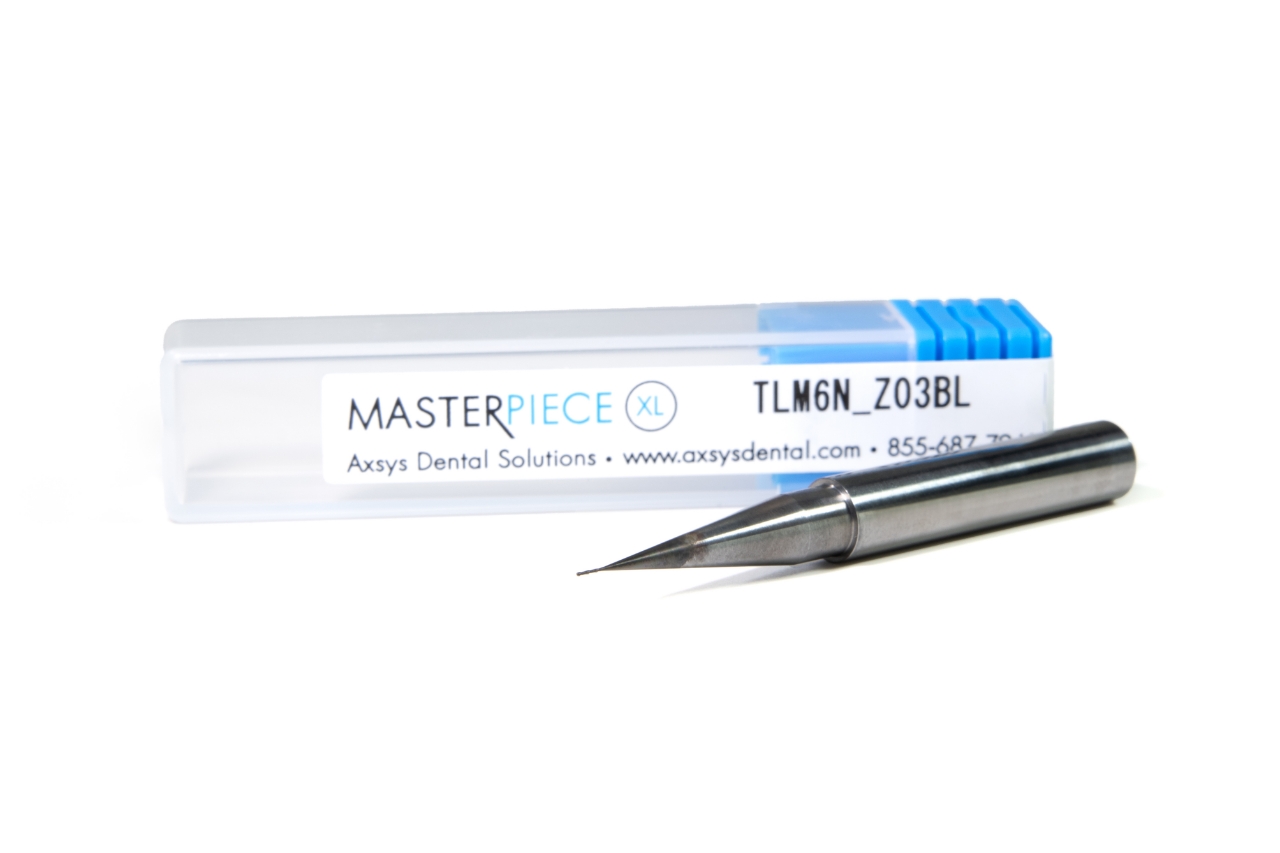

This diamond coated endmill is from our upgraded line of Masterpiece endmills and features our Ultra Diamond coating. Made from carbide, it is designed specifically for the machining of zirconia, graphite and other nonferrous materials. Extensive R&D went into finding the right tooling materials and developing the technology to form a diamond coated layer of highest hardness.

Features Include:

• 100% Diamond Coating
• 2 Flute / Extended Length
• 30 Degree Helix
• 8.0mm Effective Length
• 50.0mm Overall Length
• .01MM Radius Tolerance
