Sorry - this product is no longer available

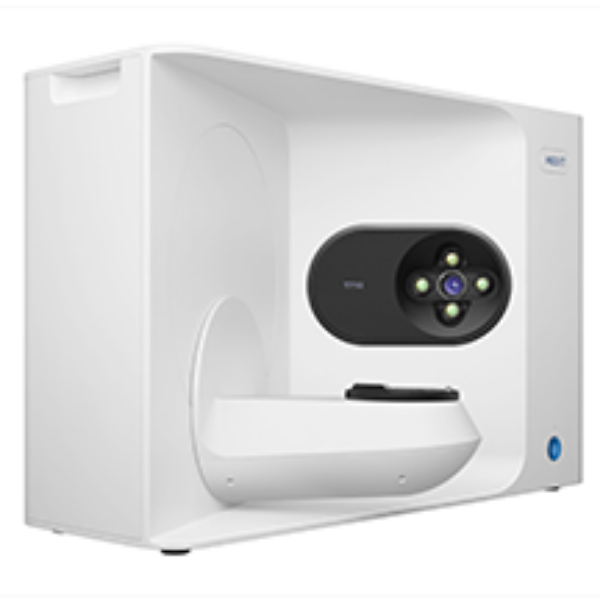

Medit T710 - Blue Light Scanner

Medit T710, T510 and T310 are high-end 3D scanners developed exclusively for dental CAD/CAM applications.

Features Include:
  • Open System
  • Implant Bridge and bar Accuracy
  • Fast Scan Times
  • Proven Reliability

An excellent laboratory scanner for models and traditional impressions. The T710 uses blue light technology and is less susceptible to background light interference. It also has an open frame which accommodates larger model work and articulators.
SKU: HW-SCAN-MEDIT-T710
$14,400.00
$12,900.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Blue Light Technology
The new T710 employs Blue LED technology that delivers superior data quality with state of the art scanning algorithms that makes scanning even faster and more precise than ever.

I.M.V (Intelligent Multi View) Scanning
The New I.M.V scanning technology ensures the acquisition of fast high quality scan data, which makes scanning your job more efficient, cost effective and productive. Conventional scanners have adopted dual-cameras with limited application for deep and narrow areas. However hard-to-access areas are no longer a hindrance to our latest development, the new Identica Blue.

Advanced Precise Color Texture
The latest technology captures vivid color texture scans with no need for an additional color camera. Capture hand-marked margins or notes in color with the Medit T-series.

Intuitive Scan Process
The T710 provides for 3-axis automatic impression scanning.

Open and Spacious
Operating from a fully open platform, the T710 offers the maximum in convenience for 3D solutions for all dental applications that conventional closed platform scanners cannot.

Open System
The basic output format of the T710 is STL, so any CAD software can utilize the file.

Included Accessories:

  • Color Texture Scan Module
  • Articulator Scanning
  • Flexible Scanning
  • Impression Scanning
  • Replica Denture
  • Orthodontic Scanning

Download the Brochure

Medit T710  Specifications

Size505mm x 271mm x 340mm
Light SourceBlue LED
InterfaceUSB 3.0 (2.0) High speed
Scanning PrinciplePhase-shifting Optical Triangulation
3D Scanning Area/Point Spacing100mm  X 72mm X 60mm
Weight15 kg
Output Data FormatSTL
Camera Resolution4 x 5 MP Cameras
Scan Speed (Full Arch)8 Seconds (8 cut)
Impresion Scanning Speed45 Seconds
PowerAC 100 V ~ 240 V, 50 ~60 Hz
Warranty1 Year
