  • Mihm-Vogt HT-2/M/ZIRCON-120
Picture of Mihm-Vogt HT-2/M/ZIRCON-120
Picture of Mihm-Vogt HT-2/M/ZIRCON-120 Picture of Mihm-Vogt HT-2/M/ZIRCON-120 Picture of Mihm-Vogt HT-2/M/ZIRCON-120

Sorry - this product is no longer available

Mihm-Vogt HT-2/M/ZIRCON-120

SKU: HW-FURNACE-HT2M
$14,490.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
75-90 SINGLE CROWNS
Features:

      • High-quality molybdenum-disilicide heating elements PRO
      • Maximum temperature 1650°C
      • Heating-chamber volume 3x Ø 120/30 mm

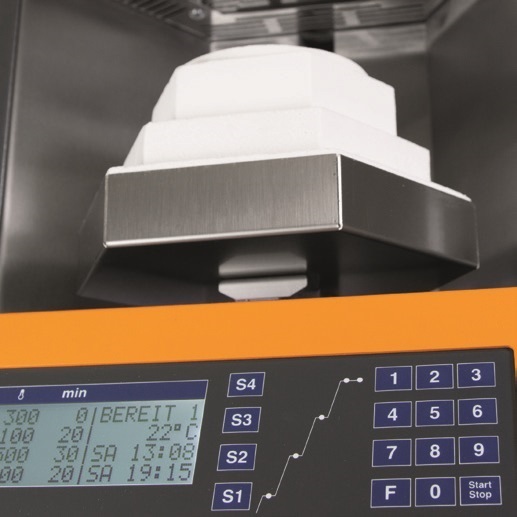

      • Program control
        - LCD-Display
        - 4 steps
        - 30 program numbers
        - Special functions
      • Service programs
        - A) Temperature control*
        - C) Purge heating chamber
        - E) Regenerate heating elements
      • Thermocouple PtRh-Pt, type S
      • Temperature accuracy at 1500°C +/- 3 °C
      • Over-night programming
      • Buffering of emergency-cooling battery

* only in conjunction with test-kit

Technical Data HT-2/M/ZIRCON-120
  • Power max. 3800W
  • Voltage range / frequency 200 – 240 V / 50-60 Hz
  • Weight 74 kg
  • Dimensions W/D/H 500/560/820 mm
Click Here to Download the Brochure
